Wall
You can edit walls with a double-click. To do this, the Dialog box Frame element is shown.

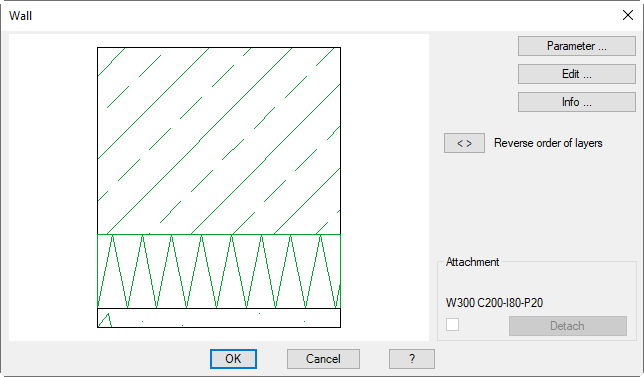

Dialog box Wall
db_ath_wall_cs_edit
Parameter
Opens the Dialog box Wall. Here, you can modify the wall properties. You will find further information on this in the Chapter Wall parameters.
Edit
Opens the Dialog box Wall manager. Here, you can modify the wall properties. You will find further information on this in the Chapter Edit wall.
Walls, which have been inserted with the Apply wall command, are linked to the saved library object. Before you can modify them, they must be released from the library object.
Info
Opens the Dialog box Component parts. You will find further information on this in the Chapter Info.
<> Reverse order of layers
Reverses the order of the layers.
Dialog box section Assignment
When a link to a saved object exists, its name is shown here.
Detach
Releases the wall from the saved library object. You can then edit its properties.
Detachment occurs immediately and cannot be discarded by closing the dialog box with Cancel.
OK closes the dialog box and the changes are implemented. Cancel closes the dialog box and the changes are discarded (with the exception of Detach).
