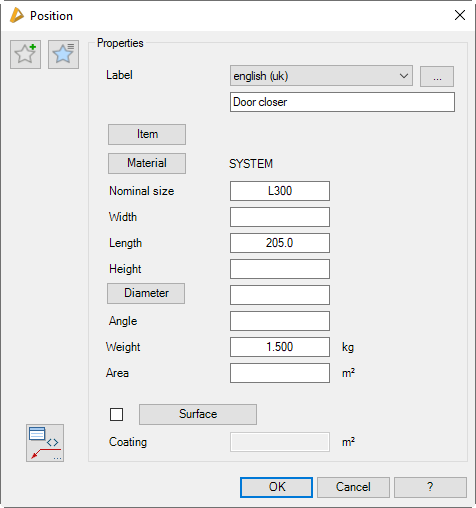

Defines the properties of a free position in an order.

At the top left there are two buttons for favorites. You will find further information on this in the section Saving and using favorites.

Opens the Dialog box Label. You will find further information on this in the Chapter Label.

Here you can specify a language-dependent label for the position. You select a language from the list and add the appropriate text in the line below. You proceed like this for each language.

Opens the Dialog box Designation, where you can conveniently enter the label in several languages.

Opens the Dialog box Item, where you can select an item number. You will find a detailed explanation on items in the Chapter Item.

Opens the Dialog box Material selection, where you can select a material. You will find further information on materials in Chapters Material and Material selection.

Defines the nominal size of the position. The nominal size can be specified alphanumerically.

Defines the width. Only numbers are allowed here.

Defines the length. Only numbers are allowed here.

Defines the height. Only numbers are allowed here.

Defines the diameter or the radius. Only numbers are allowed here.
You may switch between diameter and radius by clicking the button.

Defines the angle. Only numbers are allowed here.

Defines the weight. Only numbers are allowed here.

Defines the area. Only numbers are allowed here.

Activates a surface specification for the area.

Opens the Dialog box Surface manager, where you can select a surface and assign it to the area. You will find further information in the section Manage surfaces.

Defines the size of the coated area. Only numbers are allowed here.

Saves the current setting and terminates the dialog box.

Terminates the dialog box without saving changes.
