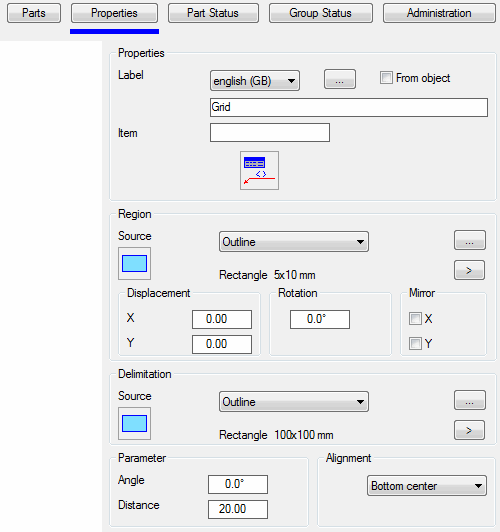

This function specifies a component through the (parallel) extrusion of a multiple offset region (grid bar) within a delimitation surface. Additionally, the extrusion direction can be specified by an angle.

Defines a designation of the current object in the selected language.

Opens the Dialog box Designation, where you can conveniently edit the labels for various languages. You will find further information in the Chapter Designation.

Defines the item number of the current object. The item number is independent of the language.

Provides various ways of describing two-dimensional geometries for grid bars. The following sources are made available.

Starts a dialog box in dependence of the selected source in order to describe the outline properties.

Inserts the outline as 2D projection into drawing.

Moves the outline by the entered distance in the X or Y direction.

Rotates the outline by the entered angle.

Mirrors the outline in the X direction or Y direction

Provides various ways of describing two-dimensional geometries. The following sources are made available.

Starts a dialog box in dependence of the selected source in order to describe the outline properties.

Inserts the outline as 2D projection into drawing.

Rotates the grid bars about the entered angle within the delimitation.

Moves the grid bars by the entered distance within the delimitation.

Defines the starting point for the distribution of the grid bars within the delimitation surface.
