Extrusion path
Specifies a component through the extrusion of a region along an extrusion path.

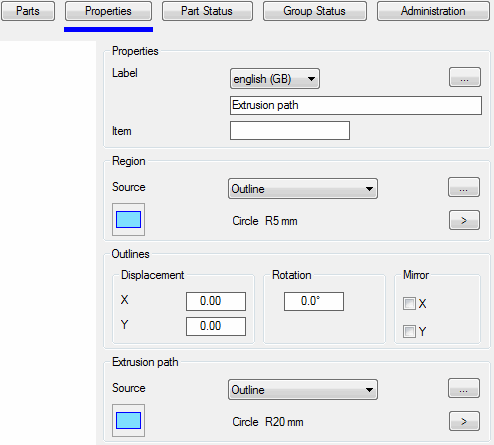

Tab Properties of the Extrusion path component type
db_ath_bgr_path
Dialog box section Properties
Designation
Defines a designation of the current object in the selected language.
[...]
Opens the Dialog box Designation, where you can conveniently edit the labels for various languages. You will find further information in the Chapter Designation.
Item
Defines the item number of the current object. The item number is independent of the language.
Dialog box section Region
Source
Provides various ways of describing two-dimensional geometries. The following sources are made available.
• Input (outline, which you have to import from the drawing)
• Standard Part
• Semi-finished product
• Gasket
• Spacer
• Outline
[...]
Starts a dialog box in dependence of the selected source in order to describe the outline properties.
Shows the outline view in the preview.
[>]
Inserts the outline as 2D projection into drawing.
Dialog box section Outlines
Displacement
Moves the outline by the entered distance in the X or Y direction.
Rotation
Rotates the outline by the entered angle.
Mirror
Mirrors the outline in the X direction or Y direction
Dialog box section Extrusion path
Source
Provides various ways of describing two-dimensional geometries. The following sources are made available.
• Input (outline, which you have to import from the drawing)
• Outline
[...]
Starts a dialog box in dependence of the selected source in order to describe the outline properties.
Shows the outline view in the preview.
[>]
Inserts the outline as 2D projection into drawing.
