Specifies a component via the bending of a region in the XY plane and its extrusion in the Z direction. Folding takes place about the Y axis which is determined by the position of the base point.
The bent component is created in that the output is centrally parted and bent by the specified angle. The edges of the region are then shortened or extended such that a closed outline is produced.

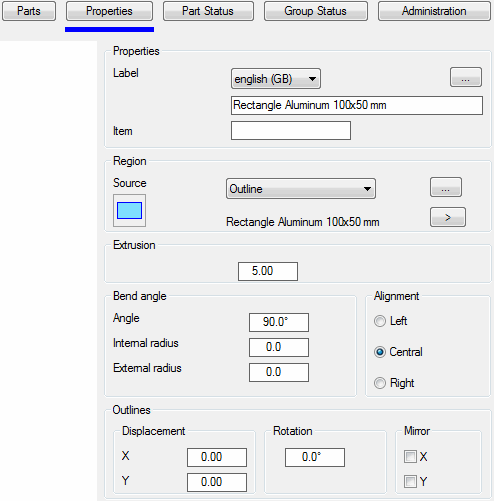

Tab Properties of the Bent extrusion component type
db_ath_bgr_angle
Dialog box section Properties
Designation
Defines a designation of the current object in the selected language.
[...]
Opens the Dialog box Designation, where you can conveniently edit the labels for various languages. You will find further information in the Chapter Designation.
Item
Defines the item number of the current object. The item number is independent of the language.
Dialog box section Region
Source
Provides various ways of describing two-dimensional geometries. The following sources are made available.
• Input (outline, which you have to import from the drawing)
