Specifies a component through the extrusion of a region.
Tab Properties of the Extrusion component type

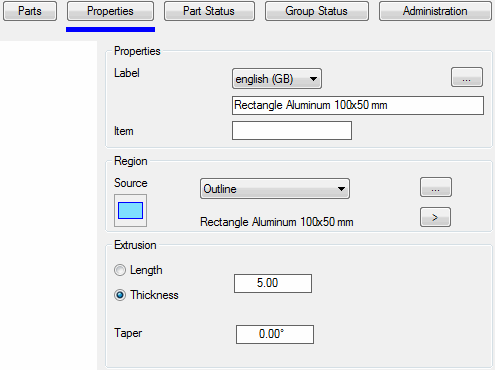

db_ath_bgr_extr
Dialog box section Properties
Designation
Defines a designation of the current object in the selected language.
[...]
Opens the Dialog box Designation, where you can conveniently edit the labels for various languages. You will find further information in the Chapter Designation.
Item
Defines the item number of the current object. The item number is independent of the language.
Dialog box section Region
Source
Provides various ways of describing two-dimensional geometries.
[...]
Starts a dialog box in dependence of the selected source in order to describe the outline properties.
Shows the outline view in the preview.
[>]
Inserts the outline as 2D projection into drawing.
Dialog box section Extrusion
Length
Defines the input as component length.
Thickness
Defines the input as component thickness.
The options Length and Thickness only have influence on the naming in the output.
